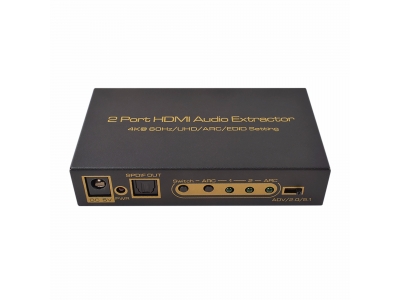

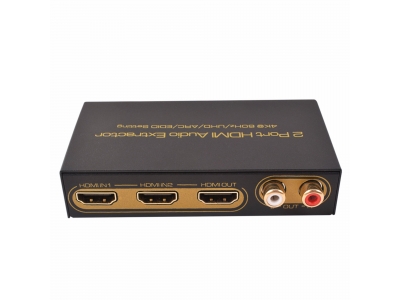

2 Port HDMI Audio Extractor 4K@60Hz/UHD/ ARC/ EDID setting
- Part No. :XZCHDCN002
2 Port HDMI Audio Extractor 4K@60Hz/UHD/ ARC/ EDID setting
2 Port HDMI Audio Extractor 4K@60Hz/UHD/ ARC/ EDID setting
FEATURES
l Three HDMI input signals switched to a single HDMI sink devices
l Any input HD Source can do audio extract by the SPDIF or L/R audio output port.
l Support HDR
l Support 4K*2K @60Hz resolution
l Video Format Support: 4Kx2K/60Hz 8Bit YcbCr4:4:4;
l Supports ARC ,TV audio will return and out by the Optical Port;
l HDMI to achieve the synchronization of audio signal separation. Support ADV/2.0/ 5.1 three kinds of audio mode options
l Digital audio port of Toslink can support 192Khz Sampling Rate(LPCM2.0 Audio Format), also can support LPCM 2.0, Dolby-AC3, DTS audio output.
l LED Status Light shows clearly the working state.
l In 4K@60Hz HDMI UHD resolution, HDMI Input and Output distance can be up to 5m using the AWG24 standard HDMI Cable. In 4K@30Hz and other lower resolution, HDMI Input and Output distance can be up to 8m using the AWG26 standard HDMI Cable.
l Easy-Install
l Need DC5V/1A power supply
The accessories with the machines list as picture:
1、Main unit 1pcs
2、5V power adapter 1pcs
3、User manual 1pcs
