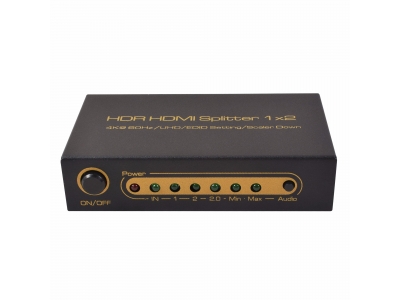

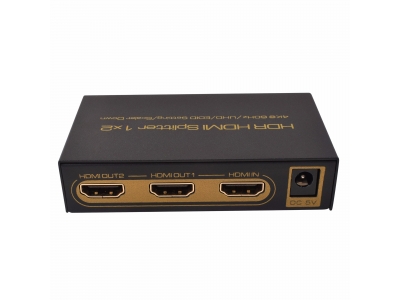

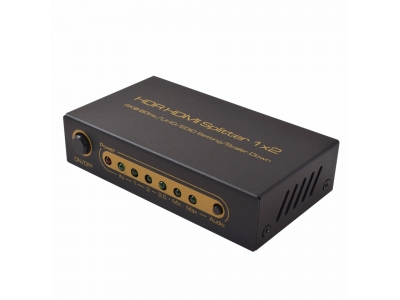

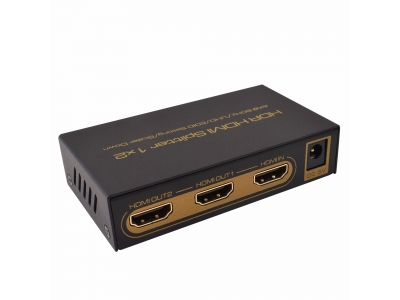

HDR HDMI Splitter 1x2 4K@ 60Hz /UHD/EDID Setting/Scaler Down

FEATURES

l One HDMI 2.0 input signal split to two HDMI 2.0 sink devices

l When 4K is input, it can support 1080P and 4K two resolutions output . (Note: output only supports the same refresh rate, for example: 60Hz).

l Support  HDR

l Support 4K*2K @60Hz resolution

l Support deep color 24bit, 30bit, 36bit

l HDMI output audio support EDID function: mix and max two audio mode option

l Video format support: 4Kx2K/60Hz 10Bit Ycbcr4:2:0; 4Kx2K/60Hz 12Bit  Ycbcr4:2:0 ; 4Kx2K/60Hz 8Bit Ycbcr4:4:4/ Ycbcr4:2:0(Note: It only support the standard HDMI source Ycbcr4:4:4 signal)

l The HDMI input cable distance can be up to 10m and HDMI output cable distance can be up to 10 when transmit the 1080P signal by using standard AWG24 HDMI cable; The HDMI Input cable distance can be up to 5m and HDMI output cable distance can be up to 5m when transmit the 4Kx2Knal by using standard AWG24 HDMI cable;

l Support signal retiming

l No loss of quality

l Installs in minutes

l Need DC5V/1A power supply

 The accessories with the machines lists as picture：

1、Main unit               1pcs

2、5V Power adaptor    1pcs

3、One pc of manual     1pcs
