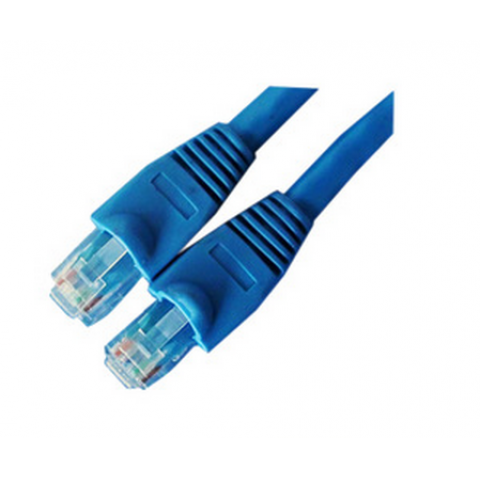

Lan Cable

  • Part No. :XZCLAN005

Features:All Material of our Category lan cables are  RoHS compliance100% tested wiring sequence and continuityOur Cat5e and Cat6 LAN cable Supports high density installationsOur Cat5e

Features:

  1. All Material of our Category lan cables are  RoHS compliance

  2. 100% tested wiring sequence and continuity

  3. Our Cat5e and Cat6 LAN cable Supports high density installations

  4. Our Cat5e and Cat6 LAN cable is exceeds cordage requirements of TIA/EIA 568B and ISO/IEC 118801

  5. Our Cat5e and Cat6  LAN cable Maintains channel performance

  6. Our Cat5e and Cat6 LAN cable Strong component performance

  7. Our Cat5e and Cat6 LAN cable Etherent Hi-Performance High Quality 550MHz Cat6 UTP Lan Cables

  8. Our Cat5e and Cat6 LAN cable Standard: Meets or exceeds Category 6 TIA/EIA- 568-B-2.1, draft 9

  9. Our Cat5e and Cat6 LAN cable Perfect in conjunction with 10 and 100 Base-T, and even 1000 Base-T networks

  10. Constructed of High-Performance Cat 5E cable suitable for 1000MHZ High-speed data applications, gigabit ethernet, fast ethernet, 155Mbps TP-PMD/CDDI .

  11. Boots offer cable-end color ID, strain relief and RJ45 plug tab protection from snagging on cables or connectors when routing in ceiling and under floors, suitable for indoor installations.



Electrical Characteristic:

1.1.0-100.0MHz Impedance (ohms):100 +/- 15

2.1.0-350.0MHz Delay Skew (ns/100m):<=45

3.Pair-to-Ground Capacitance Unbalance (pF/100m):<=330

4.Max. Conductor DC Resistance 20 degree(ohms/km):93.8

5.Resistance  Unbalance (%):<=5
