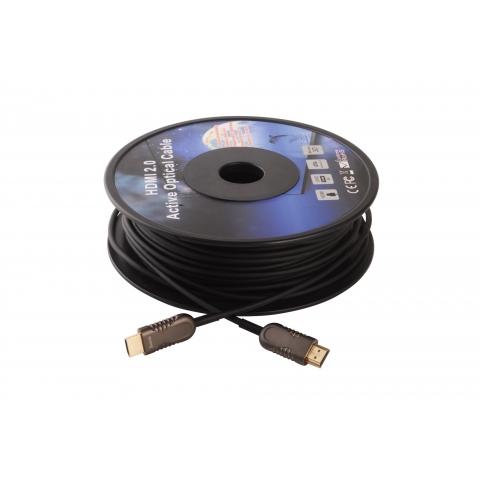

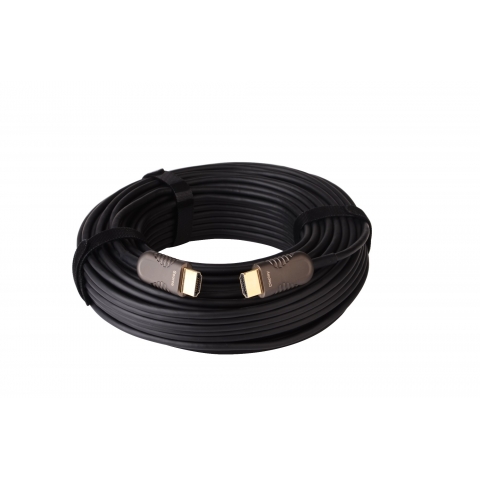

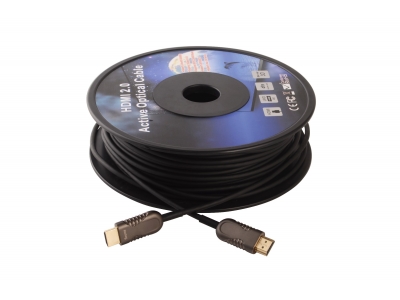

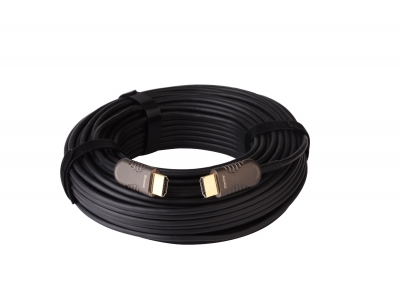

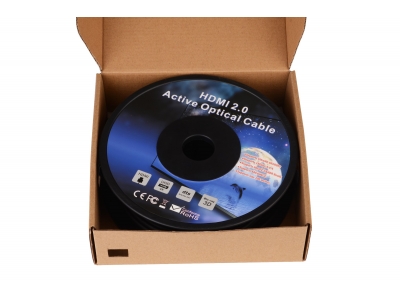

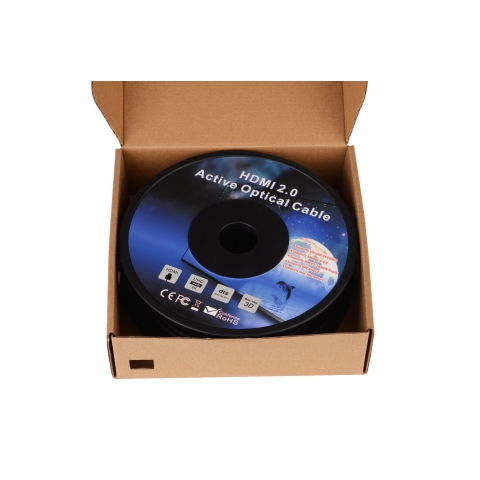

HDMI2.0 AOC Active Cable

  • Part No. :XZCHDMI034

HDMI2.0 AOC Active Cable

HDMI2.0 AOC Active Cable

Descriptions

Our HDMI Active Hybrid Cable is the most competitive long reach HDMI interconnection solution on the market. It supports HDMI Maximum Data Rate 6Gbps with light weight, flexible and ultra-small long-term bending radius (45mm) hybrid cable. With our advanced optical engine embedded. This HDMI Hybrid Cable provides full HDMI signal integrity, support up to 100m maximum length, plug and play. No external power required.

Key Features

1. Up to 100m Maximum Length.(Custom Length Available)

2.Low Power Consumption: 250mW (max). (Power Required)

3. Plug and Play

4. Compatible with HDMI 2.0 standard.

5. Support HDCP

6. Support ARC

7. Self-detecting function for EDID information

8. No loss of signal – delivering crystal clear digital images instantly.

9. Supports computer resolutions to 1080P and 4K2K(60P).

10. Hybrid optical cable with fiber and copper wire

Applications

1. Digital Signage

2. LED signboards in streets and in stadiums

3. Medical Imaging Equipment

4. Airplane On-board Video System

5. Home Theater

6. Blue-ray, 3D video, Projector, Set-up box, DVR, Game Consoles and Computer

7. TV Broadcast Station

8.Conference Room Video Equipment

9.Security systems

Absolute Maximum Rating

Parameter

Symbol

Min

Max

Unit

Power Supply Voltage

VCC

4.5

5.5

V

Operating Temperature

Top

0

50

°C

Storage Temperature

Ts

-40

70

°C

Relative Humidity

Hs

10

80

%RH

Recommended Operating Conditions

Parameter

Symbol

Min

Typical

Max

Unit

Power Supply Voltage

VCC

4.75

5.0

5.25

V

Operating Temperature

Top

0


50

°C

Specifications

Item

Description

Units

Transmitter (Source)

Receiver (Sink)

HDCP & DDC

HDCP 2.0 Fully Support bi-directional EDID and HDCP communication

Video Bandwidth

6 Gbps/x3Channel (max)+ Clock.

Supported

Resolution & Distance

PC: WUXGA 1920 x 1200 up to 100 meters,HDTV : 480p, 720p, 1080i and 1080p deep color, 4K(60P), 3DFull HD 1920 x 1080 up to 100 meters

O/E Converter

4 channel 850 nm VCSEL array

4 CH GaAs PD array

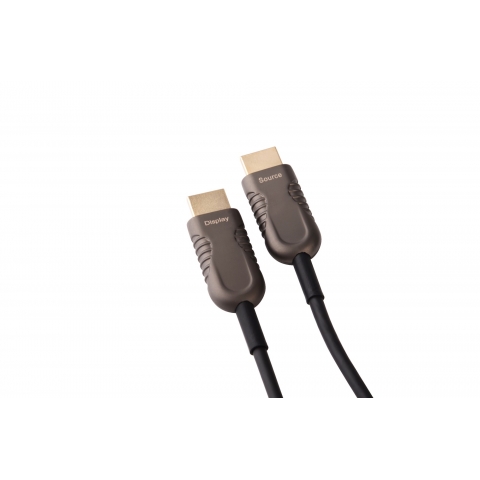

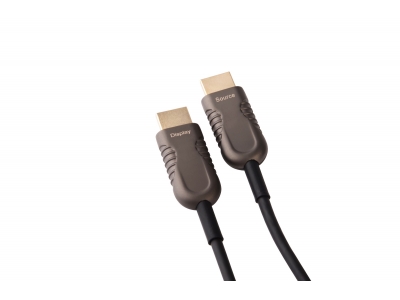

Connector Type

HDMI type A

Cable Type

Hybrid type with OM3 fiber and copper wire

Cable Length

15m/20m/30m/40m/50m/60m/70m/80m/90m/100m (with +/-30cm tolerance) Custom length available.

Cable Outer Diameter

4.5mm

Jacket Outer Material

PVC/TPU(Custom)

Cable Filler

 Kevlar

Cable Weight

                     See packing details sheet

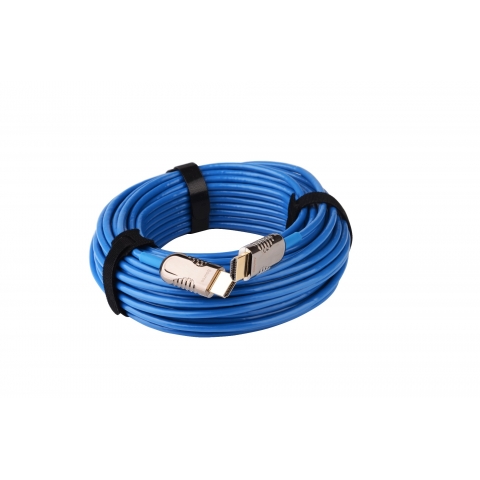

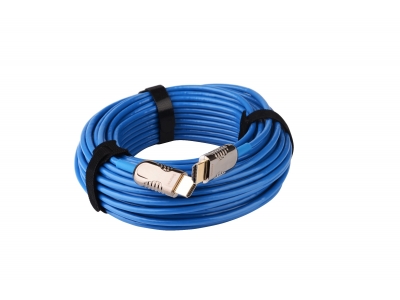

Cable Color

Black or custom

Differential Input

100 ohm (typ)

Power Consumption

250mW (max)

Power Supply

Non external power required
