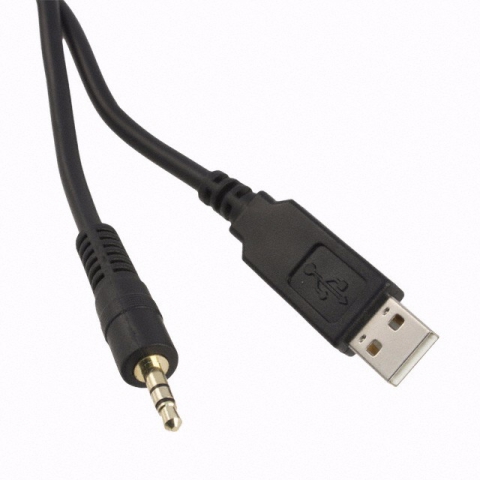

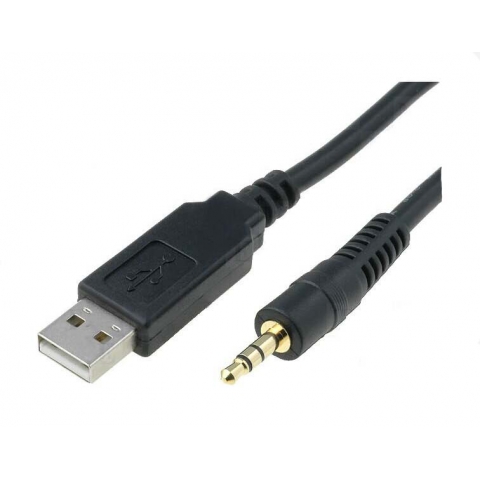

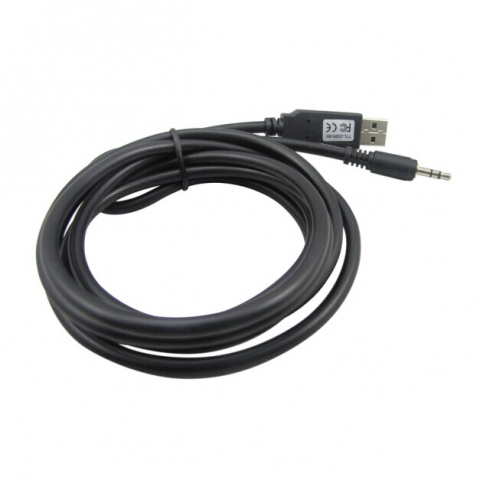

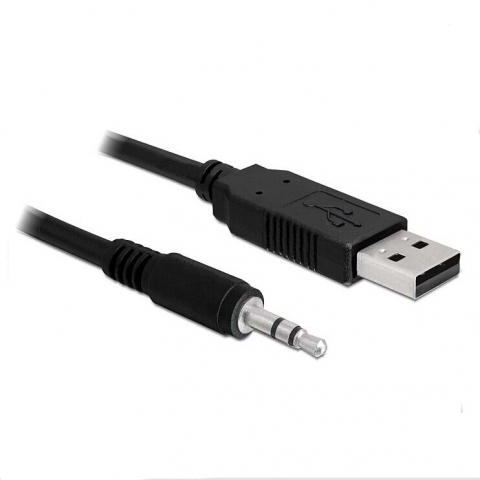

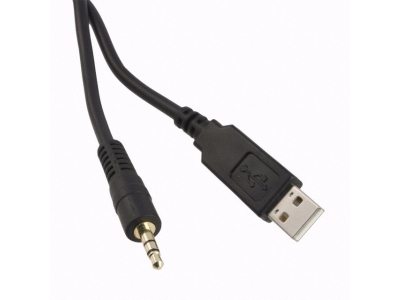

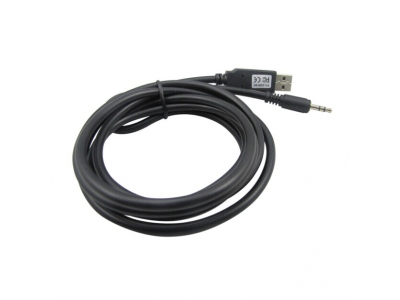

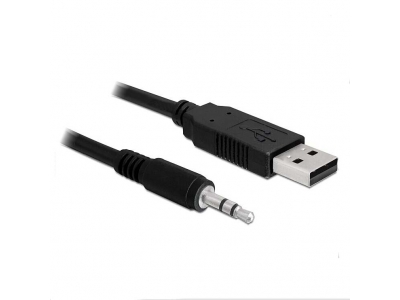

FTDI FT232RL USB to 3.3V TTL Debug Cable

High Quality  FTDI FT232RL USB to 3.3V TTL Debug Cable

Product Description:

FTDI USB to TTL Serial Cable  TTL-232R-3V3-AJ

FTDI based USB to TTL Serial Cable are designed using the standard FT232RL chipset.  The cables provide a fast, simple way to connect devices with a TTL level serial interface to USB.

Our circuits include regulatoin and short circuit protection unlike many other imported cables.

Please feel free to contact us for high volume sales or custom development.

The cables are available with a DC3.5mm audio jack and are also available at TTL levels of +5v.

·       Simple and Easy way to give USB support to your designs

·       Connects directly to microcontroller UART or I/O pins

·       PC communicates as a standard serial device

·       All circuitry integrated into sleek, moulded USB plug

·       Compatible with legacy software.

·       Based on FTDI FT232RL

·       DC3.5mm audio jack TIP, RING ,SLEEVE (GND, TX, RX)

·       Supports data rates up to 3 Mbaud allowing a significant performance increase over a standard serial port.

·       Allows devices to be powered from the USB port.

·       All I/O are protected from shorts and ESD.

·       Drivers Supplied by FTDI

·       Supports customised end connector designs.

·       Cable Length 1.80m (6 ft)
