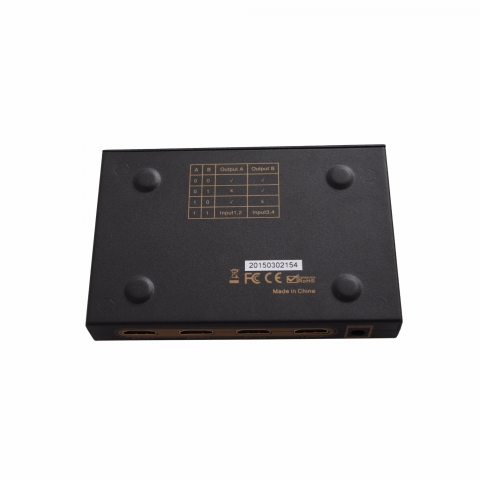

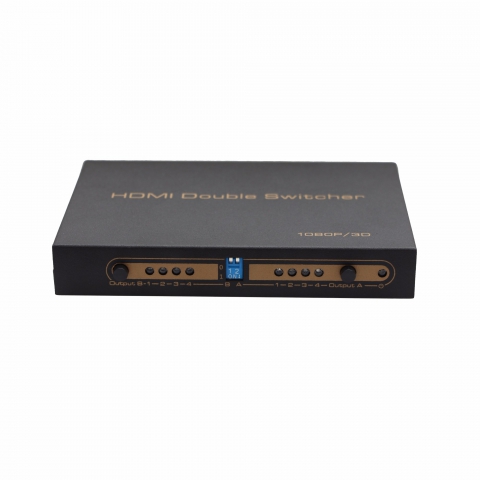

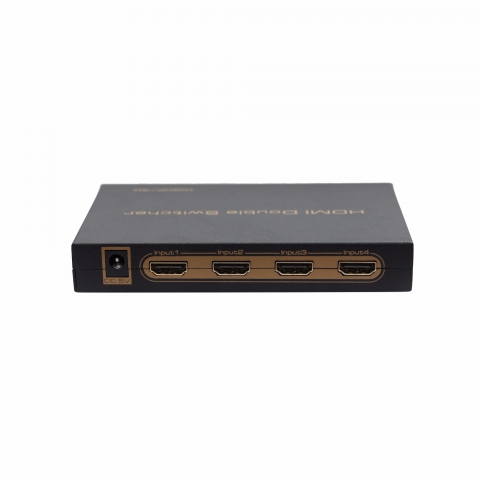

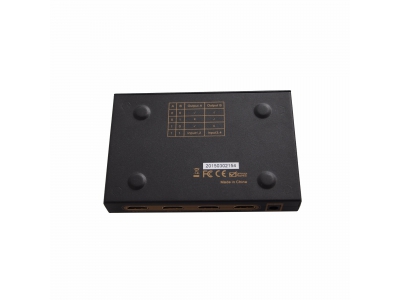

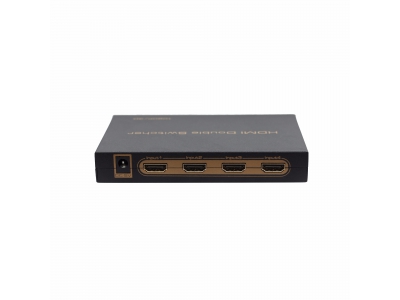

4x2 HDMI Switcher

  • Part No. :XZCHDSW010

4x2 HDMI Switcher


HDMI achieve the synchronization of audio signal separation. There are ADV/ 2.0CH / 5.1CH three kinds of audio modes.

Support Support 4K*2K resolution,Full HD 1080P, Full 3D.

Support deep color 30bit, 36bit, 48bit.

Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC.

Support signal retiming.

Inputs can be switched with the IR remote control,also can be controlled by two switch buttons.

MHL port supports the RCP function, it can do control to the smart phone and the switcher by the TV remote.

MHL/HDMI working in dual mode, can reduce the number of ports

Need DC5V/2A power supply.

HDMI Standard:HDMI support 4K*2K /60HZ input and 3D

HDMI resolution:24/50/60fs/180i/480p/576i/576p/720p/1080i/1080p

Support video color format:24bit/deep color 30bit,36bit, 48bit

Support audio format:DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

Audio output:SPDIF and 3.5mm Stereo

Input cable distance:≤15m AWG24 HDMI standard cable

Output cable distance:≤25m AWG24 HDMI standard cable
