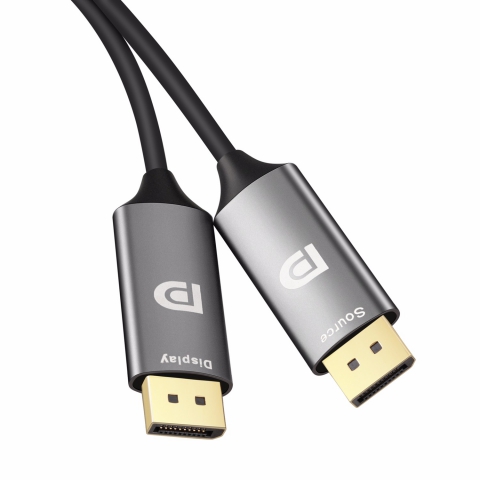

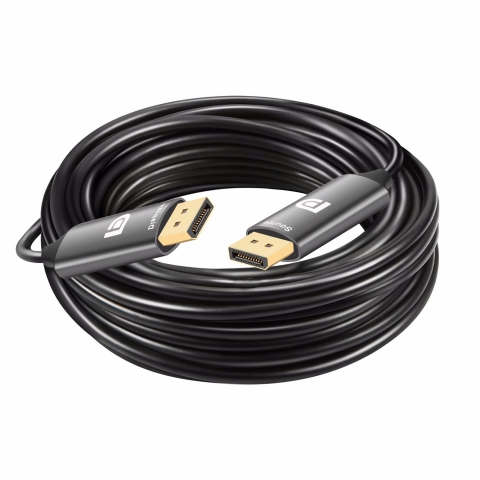

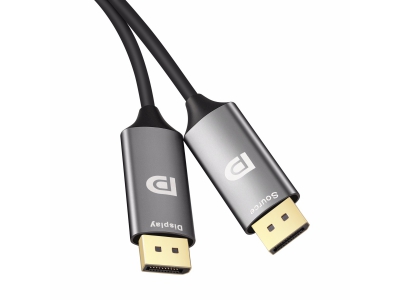

DP Male-DP Male AOC display port cable Support 1080p 4k 8k
- Part No. :XZCDPT025
DP Male-DP Male AOC cable Support 1080p 4k 8k
8k@60HZ DP to DP Active Optical AOC Fiber Optical Digital Video Interface Cable Support 1080p 4k 8k Male AOC displayport cable
Specification:
Supports Synchronized Audio & Video Transmission
Support video resolutions up to 3840x2160 60Hz and 1080P (Full HD), and flawless audio pass-thru for uncompressed digital 7.1, 5.1 or 2 channel.
Meticulous Processing
Made of triple shielding, gold plated contacts and 28AWG OFC copper to ensure interference-free signal transmission, with a release button for the easy and secure connection.
Ultra HD 4K DisplayPort 1.4V
Extend or Mirror your Laptop/PC to a second display for an expanded workstation, home theater or show presentations on a projector at the office, school or home.
Compatible for (Partial list):
Laptops: Acer Aspire 8935G, HP EliteBook 8440p, Toshiba Tecra A, Dell Inspiron 14z, Lenovo Thinkpad T410 / T500 / W520, etc.
PC Graphics Cards: Geforce GTX 960 / 1080 / 1060 / 780, Radeon R9 290, etc.
Product name | DP fiber cable |
Cable length | Up to 100m |
Connector | DP Male-DP Male (with a lock) |
Bandwidth | 32.4G |
Resolution | 4k/120HZ 4K/144HZ 8K/60HZ |
Power supply | 5V(Non external power required) |
Power consumption | Source: 85mW/3.3v, Display: 290mW/3.3v |
Cable diameter | φ4.5-5.0mm |
Tensile force | 100N/200N |
Crush Resistance | 200N/400N |
Min curvature radius | 20mm/10mm |
Work/storage temperature | 0~50°C/-20~70°C |
